Troubleshooting Guide

Error Codes

Info

---

If you encounter an error code not listed below, please open a support ticket in the Codesign Discord for assistance.

Server

5111

Example:

• This warning appears when Config.UseExploitProtection is disabled.
• It usually means the model value is missing from the saved vehicle data inside the vehicle/mods column.

Reason:

• This can be caused by another resource saving the vehicle incorrectly, such as a faulty vehicle shop.
• Less commonly, it may be caused by a player using a cheat engine.
• If the model value is missing, cd_garage cannot correctly identify the vehicle.

Solution:

• Use the SQL query below for your framework to find vehicles with a missing model value.
• Delete the affected vehicle, or manually add the correct model value back into the saved vehicle JSON.

ESX

SELECT * FROM owned_vehicles WHERE JSON_EXTRACT(vehicle, '$.model') IS NULL;

QBCore / QBox

SELECT * FROM player_vehicles WHERE JSON_EXTRACT(mods, '$.model') IS NULL;

Client

3423

Example:

• If you get an error such as Invalid vehicle model value: -1319110865.

Reason:

• This usually means the vehicle was previously added to a player's garage while the vehicle resource was installed and running.
• The vehicle files have since been removed, or the resource containing that vehicle is no longer started.
• Because the vehicle model can no longer be loaded, cd_garage cannot find the vehicle data.

Solution:

• Make sure the resource containing the vehicle is installed and started again.
• If the vehicle has been permanently removed from the server, remove or replace that vehicle from the player's garage/database.

Common Issues

Please check out our Self Debugging Guide before contacting our support.

Folder Name Make sure the name of the folder is cd_garage.

Escrowed Files Do not edit the escrowed files in any way.

Screen Flickering?

Screen Flickering?

Example:

• If your screen is flickering while using cd_easytime.

Reason:

• This is due to you having multiple time/weather sync scripts running at the same time fighting each other eg., vSync or vMenu.

Solution:

• Stop the other time/weather script that is causing this or stop cd_easytime and remove it from the dependencies in the fxmanifest.lua of cd_garage.

RGB Colours Not Saving Correctly?

RGB Colours Not Saving Correctly?

Example:

• If your vehicles RGB colours are not saving when you store a vehicle or not applying when spawning a vehicle in the garage.

Reason:

• This is because you have not made the changes to your frameworks GetVehicleProperties() and SetVehicleProperties() functions that your mechanic/customs resource requires you to do.

Solution:

• Make required changes to GetVehicleProperties() and SetVehicleProperties() according to your mechanic/customs resource.

Item(s) Not Found In Inventory Database Table:

Item(s) Not Found In Inventory Database Table:

Example:

• If you get an error when the script or server start with the name of an item, such as fakeplate.

Reason:

• You have enabled Config.FakePlates but the fake plate item has not been added to your servers items.

Solution:

• The error message tells you the name of the item that is missing, add it to your servers items.

Configurator UI Stuck Loading

Configurator UI Stuck Loading

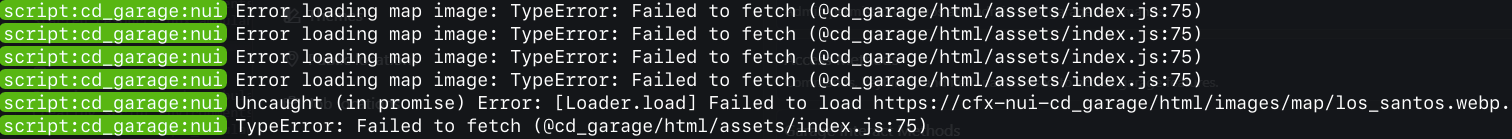

Example: If the configurator UI is stuck loading, check your client F8 console for an error like this:

Reason:

• The default los_santos.webp image is around 14MB.
• Some GPUs may not have enough VRAM to load it correctly.

Solution:

• Download the lower-quality version of the image.
• Replace the los_santos.webp file inside: cd_garage/html/images/map

Missing pound Column SQL Error

Missing pound Column SQL Error:

Example:

• If you get an SQL error saying Unknown column 'pound' in 'SET'.

Reason:

• The pound column is a default ESX vehicle database column, but it has been removed from your owned_vehicles table.
• UpdateFrameworkDefaultVehicleColumns syncs cd_garage data back to the default framework vehicle columns for compatibility. This includes things like the vehicle garage state, impound state, and current garage.

Solution:

• Disable the UpdateFrameworkDefaultVehicleColumns option in the in-game configurator.
• You can do this using /garageconfig.

Missing pound Column SQL Error

Missing pound Column SQL Error:

Example:

• If you get an SQL error saying Unknown column 'pound' in 'SET'.

Reason:

• The pound column is a default ESX vehicle database column, but it has been removed from your owned_vehicles table.
• UpdateFrameworkDefaultVehicleColumns syncs cd_garage data back to the default framework vehicle columns for compatibility. This includes things like the vehicle garage state, impound state, and current garage.

Solution:

• Disable the UpdateFrameworkDefaultVehicleColumns option in the in-game configurator.
• You can do this using /garageconfig.

Invalid vehicle model value: -1319110865
